0 - Understanding Broadcasting

Notation: We will use parentheses to denote the shape of a matrix. For instance, a matrix $A$ with shape $m\times n$ will be written as $A,(m,n)$.

Suppose we have two tensors, $X$, $(x_0,x_1,\dots ,x_{m-1})$ and $Y$, $(y_0,y_1,\dots ,y_{n-1})$.

Now, consider performing an element-wise multiplication, $X\ast Y$. The rules for NumPy broadcasting are as follows:
First, align the shapes of the tensors by right-justifying them (assuming $n<m$). $$ (x_{0}, x_{1}, \dots, x_{k}, \dots, x_{m-2}, x_{m-1}) $$ $$ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ \ (y_{0}, \dots, y_{n-2}, y_{n-1}) $$ Here, each $y_i$ is aligned with $x_{k+i}$, where $k=m-n$. Now, $X$ and $Y$ are eligible for broadcasting if, for each pair $(y_i,x_{k+i})$:

1. $y_i=x_{k+i}$
2. $y_i=1$ (in which case $y_i$ is expanded to $x_{k+i}$)
3. $x_{k+i}=1$ (in which case $x_{k+i}$ is expanded to $y_i$)

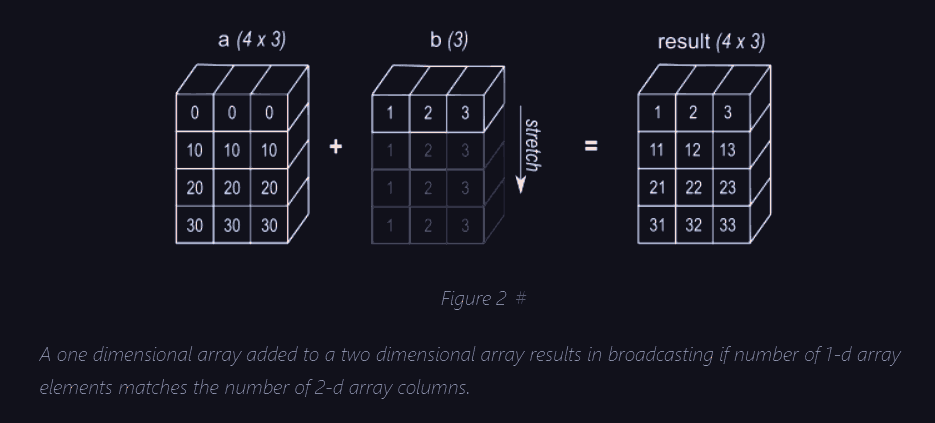

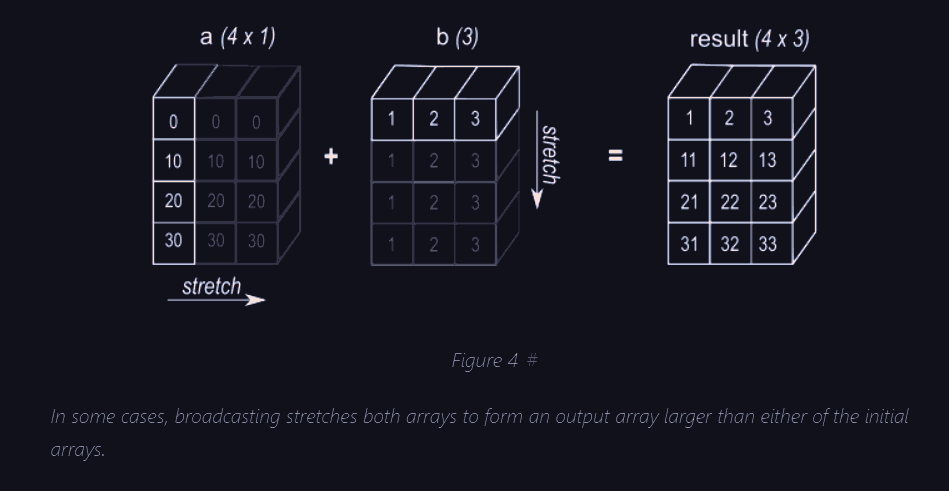

In the above discussion, we described how the shapes of the tensors are aligned for broadcasting. Now, let's discuss what happens to the actual tensor values: the values are copied along the expandable dimensions.

source: NumPy broadcast docs

Element-Wise operations:

Consider the above tensors $X$, $(x_0,x_1,\dots ,x_{m-1})$ and $Y$, $(y_0,y_1,\dots ,y_{n-1})$, where $n\le m$. let $(\cdot )$ denote any elementwise operator. let us write python functions to calculate $Z=X\cdot Y$, $J=\text{sum all elements}(Z^2)$.

Then, using the multivariable chain rule, we will evaluate $\frac{\partial J}{\partial Y}$ for the elementwise operations $+,\ast ,/,-$. In order to make sure our implementations are correct, we will test our function with 3d tensors, where each dimension is at most four, by evaluating the numerical approximation of $\frac{\partial J}{\partial Y}$.
